MCS ADVENTURES Product Details

MCSADVENTURES plug and play turn signal kit for 14+ RZR, 18+ Ranger: Rocker switch (amber), replacement fang lights (clear lens)

62951: MCSADVENTURES plug and play turn signal kit for 14+ RZR, 18+ Ranger: Rocker switch (amber), replacement fang lights (clear lens)

Kit Finder

Kit: m62951 This items ships to the US lower 48 for FREE. US shipping: FREE. Shipping is only available to the USA Only ships to the USA

Pricing
Quantity	1
Price	$325.00
Applied

Plug and play installation
Uses factory tail lights
Includes power plug for Polaris
Includes in-dash indicator harness

power harness

fang lights

vertical rocker

Kit Diagram

Dash indicator connection info

Add on accessories

Trailer Plug harness

m62724

To be purchased at the same time as a plug and play kit. The kit will be custom built to include a 4-pin trailer plug connection at the rear.

$26.95

Whip light harness

m63694

To be installed with a plug and play kit. Adds a connection for auxillary turn signals such as whip lights, mirrors etc. Plug and play installation.

$16.95

Dash Plug tool

m63728

OPTIONAL: For those who plan to use the in-dash indicators, this tool aids in the disassembly of the dash cluster plug.

$9.99

Parts

Shop

Kit features

Turn Switch

Front Lights

Cluster tie in

Power harness

Links

Replacement Parts

Part number cross reference

Components:

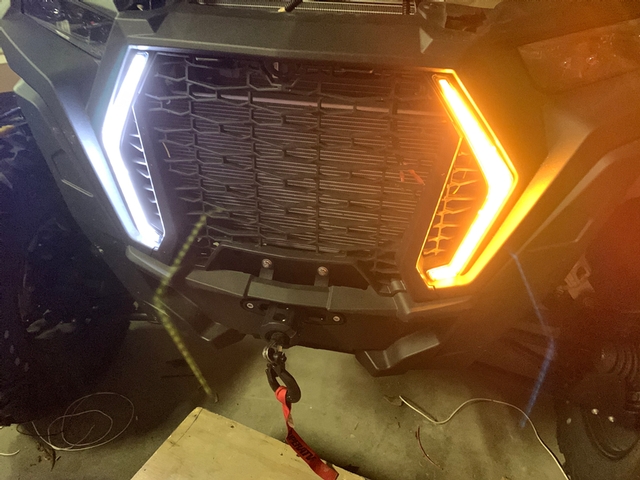

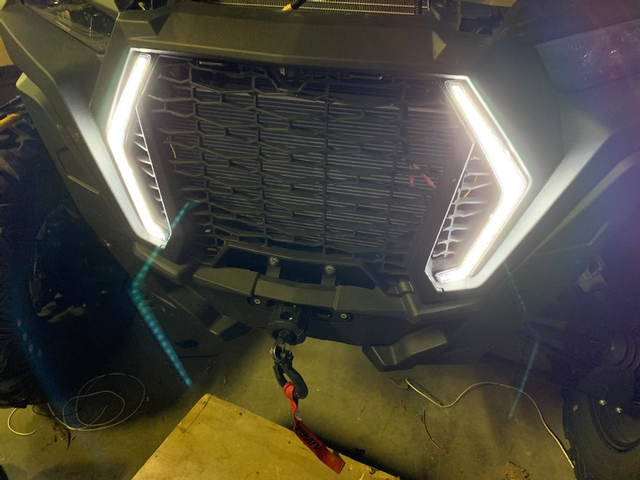

Front lights: Replacement fang lights with clear lens

These replacement front fang lights include amber lights that are uses as turn indicators. The running light wires connect to the factory fang harness. The turn function plugs into our turn signal harness.

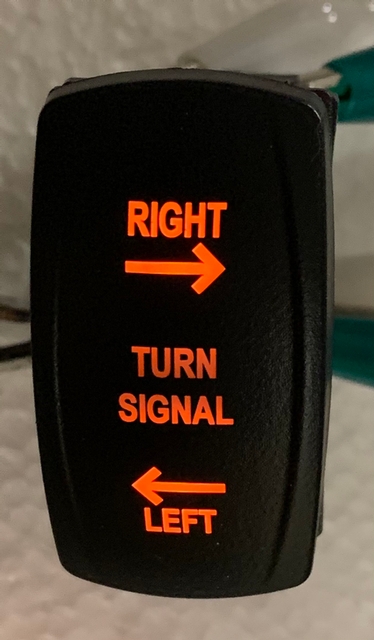

Dash mounted rocker switch - orange backlight

Carling Contura Series switches match the factory switches on many vehicles. The orange backlights in the switch also function as turn indicators.

Adjustable Flasher Relay

Flasher relay with adjustable flash rate. Use the dial to adjust the flash rate. This flasher (CF3) can be replaced with the non adustable EP34 in a pinch. Installation: the relay should be mounted away from water. It is best to zip tie a plastic bag around the relay if you powerwash the interior of your vehicle.

Dash cluster tie-in

If you have the instrument cluster pictured, you may wish to utilize our cluster tie-in kit to utilize the indicator arrows in your OEM gauge. Simply snap the pins from our harness into the factory plug housing. Note: may not be compatible with all machines even with this cluster (example: 2018 Ranger won't work). If you choose to utilize this feature, a complete test should be performed with machine off and machine running prior to installation. Most issues with installing the cluster harness can be solved by pressing the harness pins further into the housing. The pins may click before they are fully seated. Green led indicators are included for those unable to take advantage of the cluster tie-in. more info here

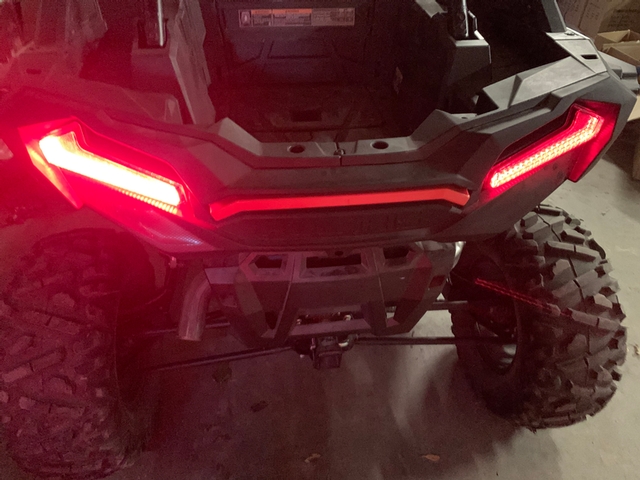

Rear tail light tie-in harness

Rear T-Harness adds rear turn signal functionality to the factory tail lights. The harness Ts into the factory harness at each rear tail light. Your vehicle needs to have tail lights with the 4 pin plug shown in the photos below.

Accessory power plug tie-in

For vehicles equipped with an accessory power bar. This power plug can be attached to the turn signal kit harness using the provided connectors.

Features

Kit is comprised of a complete switch/control module front harness which connects to a rear T harness.

Rocker switch harnesses are prewired into the main control module and simply plug onto the back of the rocker switch. No fumbling with qd terminals.

Amber illuminated Left / Right rocker lights up with key on and also flashes when selected thus indicating direction.

Includes optional instrument cluster integration for machines with the instrument cluster shown.

A custom rear T harness plugs into the left and right factory tail lights and converts the factory brake lights for use as brake AND turn signals. We also supply a license plate light pigtail that can activate your license plate light with key on.

Front fang lights quickly mount in place of the factory plastic fang accent blanks and plug into factory connector on the machine. Each fang light has a 3rd wire prepped with a connector ready to plug into the harness to provide turn signal function. No splicing or crimping wires. It simply all plugs together.

Specifications

MADE IN USA

Installation

Installation times will vary based on your familiarity with the vehicle. A beginner could plan on spending 5 hours on the install while an installer could plan on 20 to 30 minutes.

Painfully simple to install. All components terminated with connectors allowing for full plug and play operation.

Rear T harness plugs into the left and right tail lights utilizing the rear brake lights as turn signals. This custom harness feeds from the rear of machine through tunnel and up into hood compartment where it feeds through firewall into dash and plugs into the control module

A complete front end harness feeds through firewall into dash and also plugs into the control module.

For power only 3 connections to the machine are required: 12v+ batt 12v+ keyed ignition 12v-ground

A pulse power harness is included for machines with the pulse power bar.

Total install time: approx 1 hour

Photos

Description

MCSADVENTURES Rocker turn signal kit with front fang lights

Fits 19-23 RZR xp1000 and 19-21 Turbo

Fits 18-21 RZR Turbo S

Will also fit many 2021+ RZR Trail and Trail S models

Rocker switch snaps into OEM sized .83 X 1.48 cutout

Plug and Play utilizing factory brake lights

Custom rear T harness plugs into the left and right tail light harness

Extended length harness fits 2 and 4 seat models

Includes Pulse bar harness

Looking for a true plug and play way to add turn signals to your 19-23 RZR xp1000, 19-21 Turbo and 18-21 Turbo S that utilizes the factory tail lights?

We've designed a great plug n play solution at a very reasonable price.

Compatibility

Polaris RZR

2019-2023 RZR 1000

2021, 2023-2024 RZR Trail

2022 RZR Trail 900

2022 RZR Trail S

2019-2021 RZR Turbo

2018-2021 RZR Turbo S
