MCSADVENTURES plug and play turn signal kit for 14+ RZR: Rocker (horizontal) switch: teardrop lights (white lens) and 3/4 lights (clear lens)

63562: MCSADVENTURES plug and play turn signal kit for 14+ RZR: Rocker (horizontal) switch: teardrop lights (white lens) and 3/4 lights (clear lens)

Kit Finder

Kit: m63562 This items ships to the US lower 48 for FREE. US shipping: FREE. Shipping is only available to the USA Only ships to the USA

Pricing
Quantity	1
Price	$360.00
Applied

Plug and play installation
Uses factory tail lights
Includes power plug for Polaris
Includes in-dash indicator harness

power harness

horizontal rocker

Dash indicator connection info

Add on accessories

Trailer Plug harness

m62724

To be purchased at the same time as a plug and play kit. The kit will be custom built to include a 4-pin trailer plug connection at the rear.

$26.95

Daytime running lights

m63377

Allows SINGLE COLOR front turn signals to also function as running lights. (Not needed for front lights with built in DRL function)

$25.99

Whip light harness

m63694

To be installed with a plug and play kit. Adds a connection for auxillary turn signals such as whip lights, mirrors etc. Plug and play installation.

$16.95

Dash Plug tool

m63728

OPTIONAL: For those who plan to use the in-dash indicators, this tool aids in the disassembly of the dash cluster plug.

$9.99

Parts

Shop

Kit features

Turn Switch

Front Lights

Cluster tie in

Power harness

Links

Replacement Parts

Part number cross reference

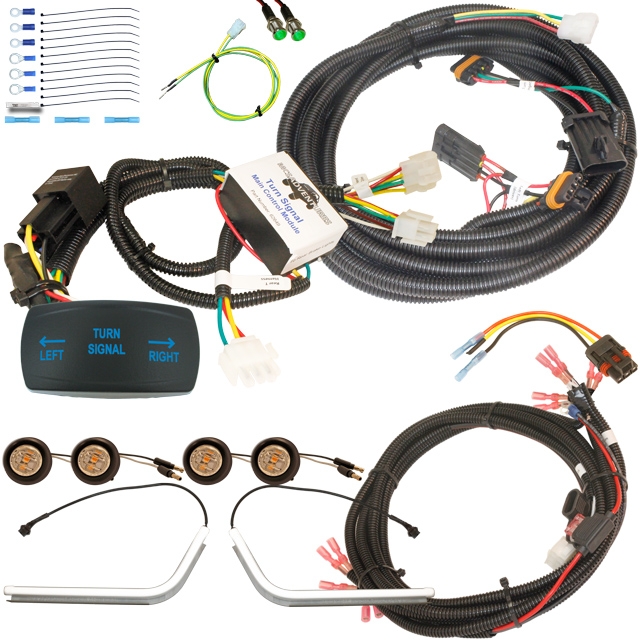

Components:

Front lights: 3/4 LED Recessed (amber lens, amber light)

3/4" Recessed Bullet LED Light - Amber Lens / Amber Light. Most of our kits ship with 3 lights per side which allows for a light to be installed around to the side for maximum visiblity.

Front lights: LED tubes in clip

These front LED tube lights have white running lights and amber sequential turn signals. Mount by pressing the LED tube into the area around the vehicle headlights

Adjustable Flasher Relay

Flasher relay with adjustable flash rate. Use the dial to adjust the flash rate. This flasher (CF3) can be replaced with the non adustable EP34 in a pinch. Installation: the relay should be mounted away from water. It is best to zip tie a plastic bag around the relay if you powerwash the interior of your vehicle.

Dash cluster tie-in

If you have the instrument cluster pictured, you may wish to utilize our cluster tie-in kit to utilize the indicator arrows in your OEM gauge. Simply snap the pins from our harness into the factory plug housing. Note: may not be compatible with all machines even with this cluster (example: 2018 Ranger won't work). If you choose to utilize this feature, a complete test should be performed with machine off and machine running prior to installation. Most issues with installing the cluster harness can be solved by pressing the harness pins further into the housing. The pins may click before they are fully seated. Green led indicators are included for those unable to take advantage of the cluster tie-in. more info here

Rear tail light tie-in harness

Rear T-Harness adds rear turn signal functionality to the factory tail lights. The harness Ts into the factory harness at each rear tail light. Your vehicle needs to have tail lights with the 4 pin plug shown in the photos below.

Accessory power plug tie-in

For vehicles equipped with an accessory power bar. This power plug can be attached to the turn signal kit harness using the provided connectors.

Features

Kit is comprised of a complete switch/control module front harness which connects to a rear T harness.

Rocker switch harnesses are prewired into the main control module and simply plug onto the back of the rocker switch. No fumbling with qd terminals.

Blue illuminated Left / Right rocker lights up with key on and also flashes when selected thus indicating direction.

Includes optional instrument cluster integration for machines with the instrument cluster shown.

A custom rear T harness plugs into the left and right factory tail lights and converts the factory brake lights for use as brake AND turn signals. We also supply a license plate light pigtail that can activate your license plate light with key on.

Front indicators (2 per side) mount into a 3/4" diameter hole to provide a clean oem appearance.

Looking to add even more visibility to your front turn signals utilizing aftermarket LED lights or Fang lights? No problem, simply take our wire and connect it to your favorite front turn signal LED lights.

All plug and play. Everything plugs together.

Only 3 connections to the vehicle: 12v+ batt 12v+ keyed (ignition) 12v- (ground)

Specifications

MADE IN USA

Installation

Installation times will vary based on your familiarity with the vehicle. A beginner could plan on spending 5 hours on the install while an installer could plan on 20 to 30 minutes.

Painfully simple to install. All components terminated with connectors allowing for full plug and play operation.

Rear T harness plugs into the left and right tail lights utilizing the rear brake lights as turn signals. This custom harness feeds from the rear of machine through tunnel and up into hood compartment where it feeds through firewall into dash and plugs into the control module

A complete front end harness with sealed LED lights feeds through firewall into dash and also plugs into the control module.

For power only 3 connections to the machine are required: 12v+ batt 12v+ keyed ignition 12v-ground

A pulse power harness is included for machines with the pulse power bar.

Total install time: approx 1 hour

Photos

Description

MCSADVENTURES Rocker turn signal kit

Fits 2014+ Polaris RZR 900s, 1000s, xp1000, xp Turbo, Turbo S, Pro XP

Rocker switch snaps into .83 X 1.48 cutout

Plug and Play utilizing factory brake lights

Custom rear T harness plugs into the left and right tail light harness

Extended length harness fits 2 and 4 seat models

Includes Pulse bar harness for newer 2019+ machines.

clear / amber front indicators

Looking for a true plug and play way to add turn signals to your 2014+ RZR that utilizes the factory tail lights?

We've designed a great plug n play solution at a very reasonable price.

Compatibility

Polaris RZR

2014-2023 RZR 1000

2015-2019 RZR 900

2020 RZR PRO XP

2018-2022 RZR RS1

2020-2021, 2023-2024 RZR Trail

2022 RZR Trail 900

2022 RZR Trail S

2016-2021 RZR Turbo

2018-2021 RZR Turbo S
